Fat bike motor 500 W/750 W electric bike motor kit

  • $262.00
Tax included. Shipping calculated at checkout.


This Fat bike rear-drive motor kit,which is including motor wheel,controlle, Power cord adapter for bullet connector 500mm,LCD display,throttle,e-brake,PAS and necessary cables.electric bike motor

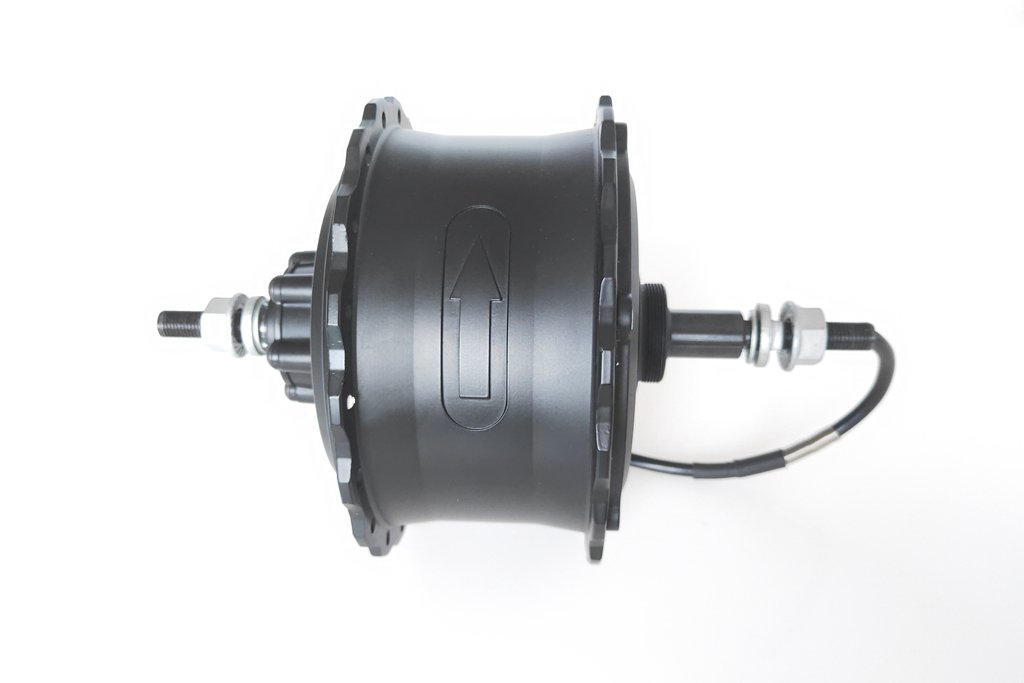

 Motor specifications:

Voltage(DCV) 36/48 V
Wattage(W)  500 W/750 W
Speed(Km/h) 25-48
Torque(N.m) 32/80
Weight(Kg) 4.6
RPM(r/min) 180-420
Reduction ratio 5:1
Open size(mm) 170
Noise degree(dB) <55
Salt Spary test(h) 96
Spokes 13 G/36 spokes
Free wheel Screw 7 s/8 s/9 s
Hall sensor Yes
Speed sensor Yes
Construction Geared
Color Black
Position Rear
Brake Disc brake
Certificate CE/RoHS
Motor Cable 9-pin julet  waterproof connector



rear drive

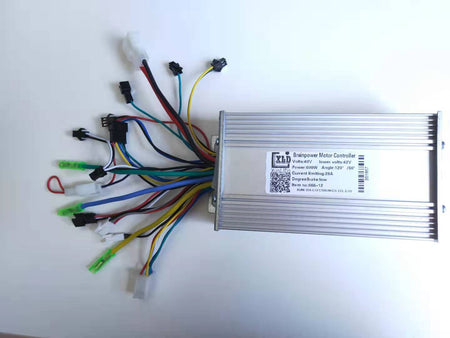

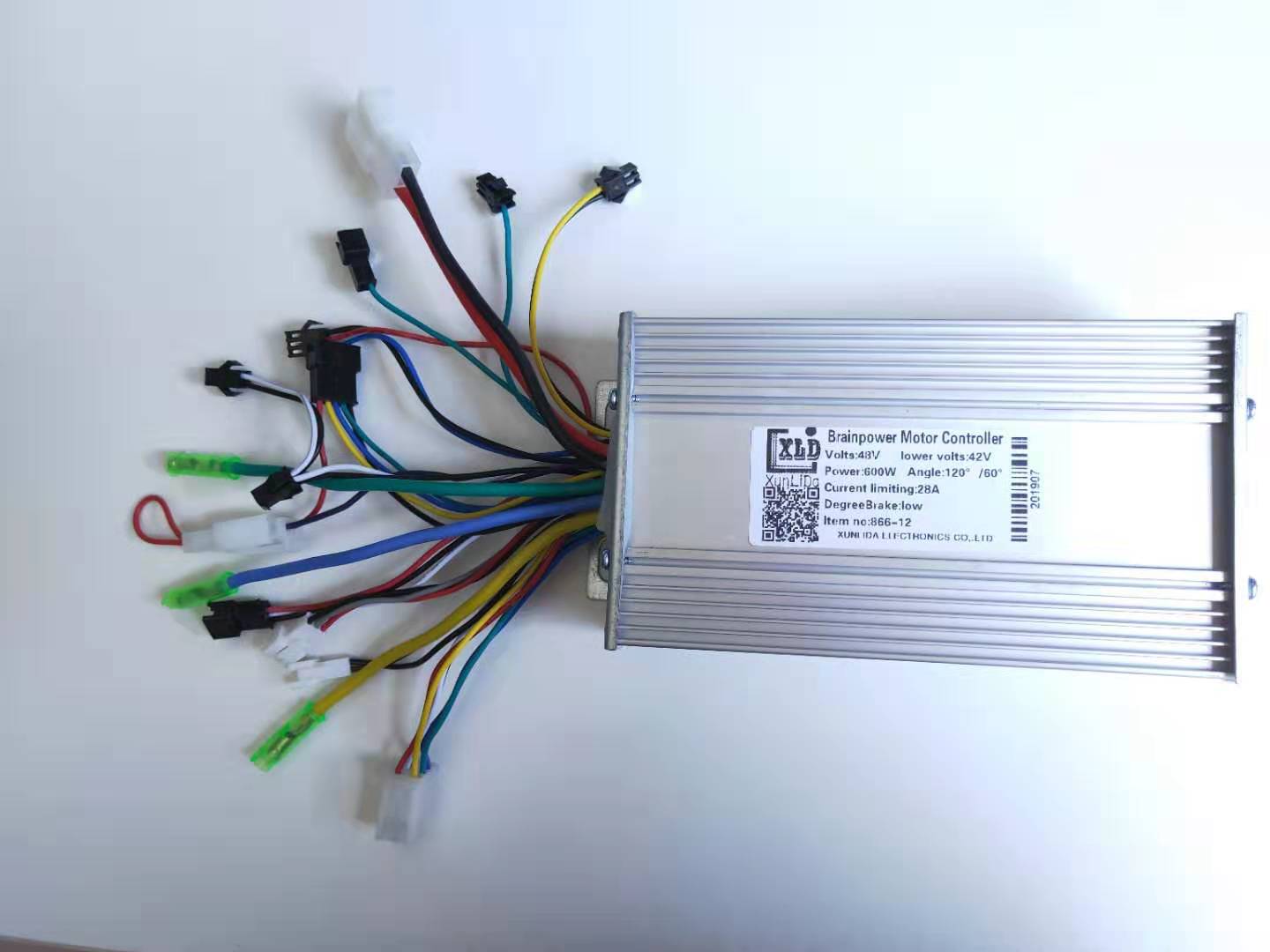

Controller Specifications:

Voltage :36 V/48 V

Wattage :500W/750W

Current :13 Amp

Lower volts :30 V/42 V

500W/750W controller

Power cord adapter for bullet connector

Power cord adapter for bullet connector

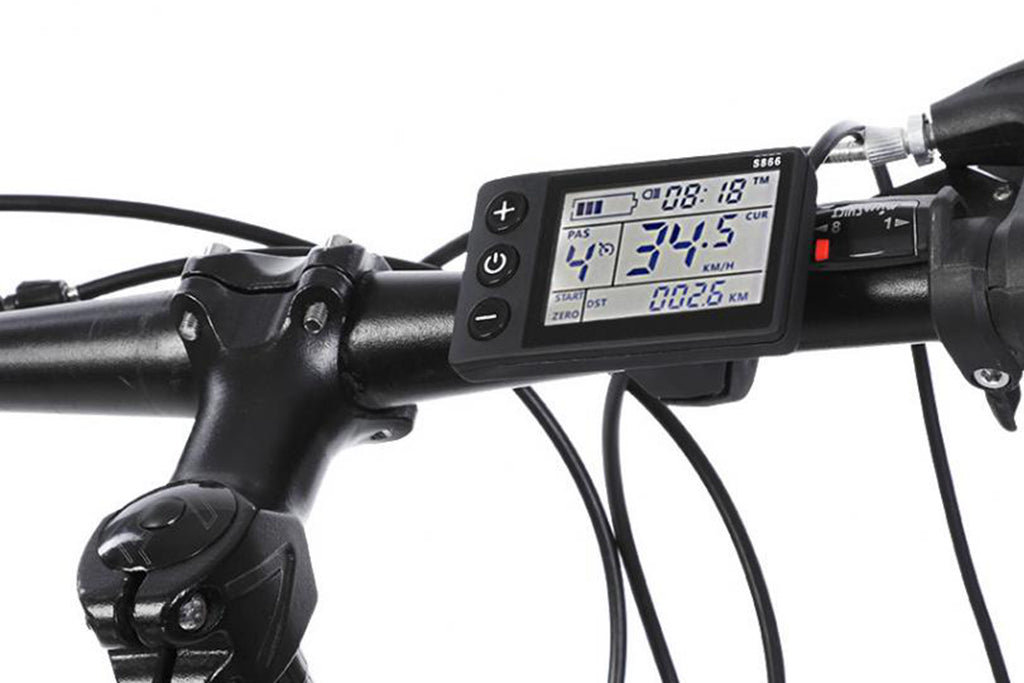

With handle bar LCD display

handle bar lcd display

The display shell is made with ABS material,the screen itself is made from stalinite which makes the display very robust and longer using life.

Display the speed,assistant level,battery capacity,error code,ODO,trip,light and single riding time.

Setting is including battery power button,front light button,6 km/h walking,wheel diameter setting,Max speed setting,sleep time,back light and voltage setting.

LCD display handlebar

C965 display 800S

Bafang display

Display M5



Display P9

12 magnets PAS

pedel assistant sensor PAS

Wuxing twist throttle/thumb throttle

wuxing twist throttle

Wuxing electric brake lever

wuxing brake

Tips you want to know:

About shipping,we will process your order when payment is done,delivery option would be standard Fedex/TNT/UPS according to your country address,the door to door shipping time is about 6-7 days.The default shipping address would be the bill address,please leave a correct address and telephone number when check out.

About warranty,our products do 1 year warranty for customers,if there are issue parts due to our products quality cause we will resend spare parts for free.
