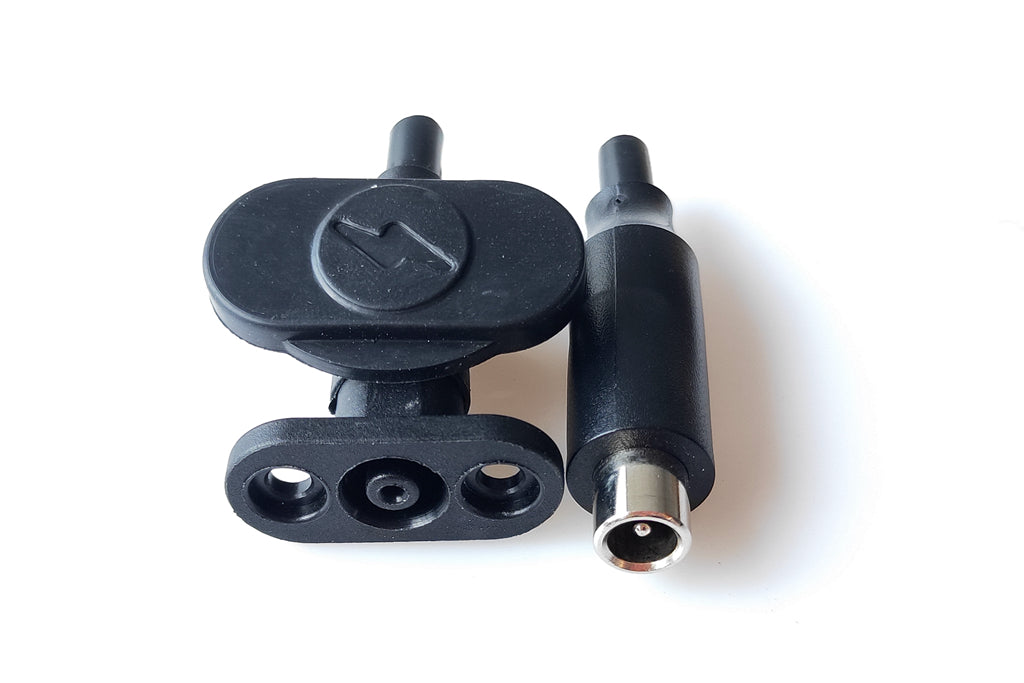

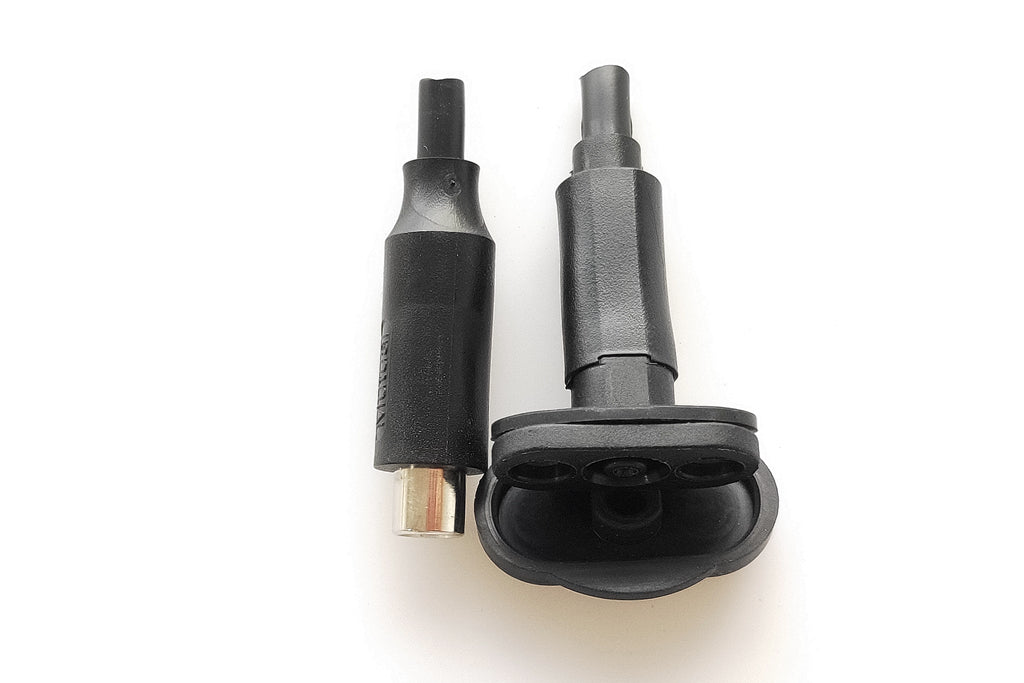

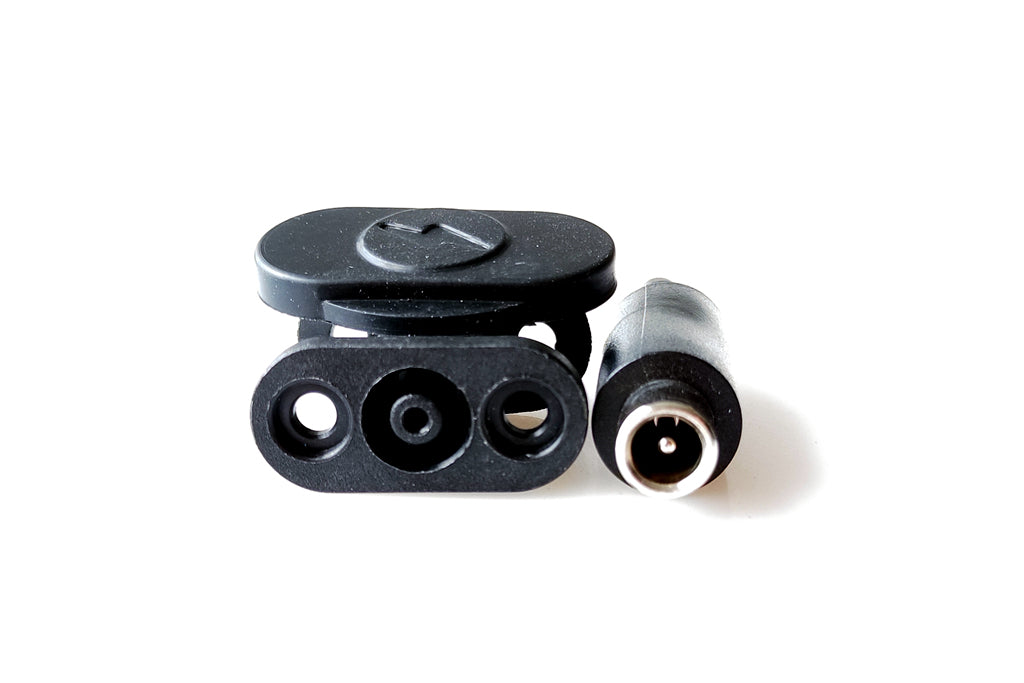

Battery connector with signal main power wire
This is the battery connector with single main power wire,this connector is used for charging battery.The battery connector with gold surface on the pins makes sure the efficient current transportation.This connector plug-in&out can be 10000 times which is compatible with battery long using life.The charging connector connector is an ideal choice for 10A battery charging.
Keywords:
ebike battery connector
ebike battery connector types
ebike power connector
ebike charger connector
battery charger terminals
ebike battery connections
For more connectors please refer to:
https://www.mutuallc.com
Specifications:
Temperature Range:-25℃~+80℃
Rated Voltage: 48 V AC/DC
Rated Current:10 A
Contact Resistance:≤10 mΩ
Insulation Resistance:≥20 MΩ
Contact Material: Copper Alloy Plated with gold which conforms to military standard
Protection Level: IP 65-667
Contact Durability: 3000 times
Withstanding Voltage:500V
Mating type: NA
Mating Cycles:10000 times
External diameter:28mm
Mating length:73mm
Wire section:0.82 m㎡
Custom cable length.For more design please contact us email:Motowoks@hotmail.com
Tips you want to know:
About shipping,we will process your order when payment is done,delivery option would be standard Fedex/TNT/UPS according to your country address,the door to door shipping time is about 7-9 days.The default address would be the bill address,please leave a correct address and telephone number when check out.
About warranty,our products do 1 year warranty for customers,if there are issue parts due to our products quality cause we will resend spare parts for free.
