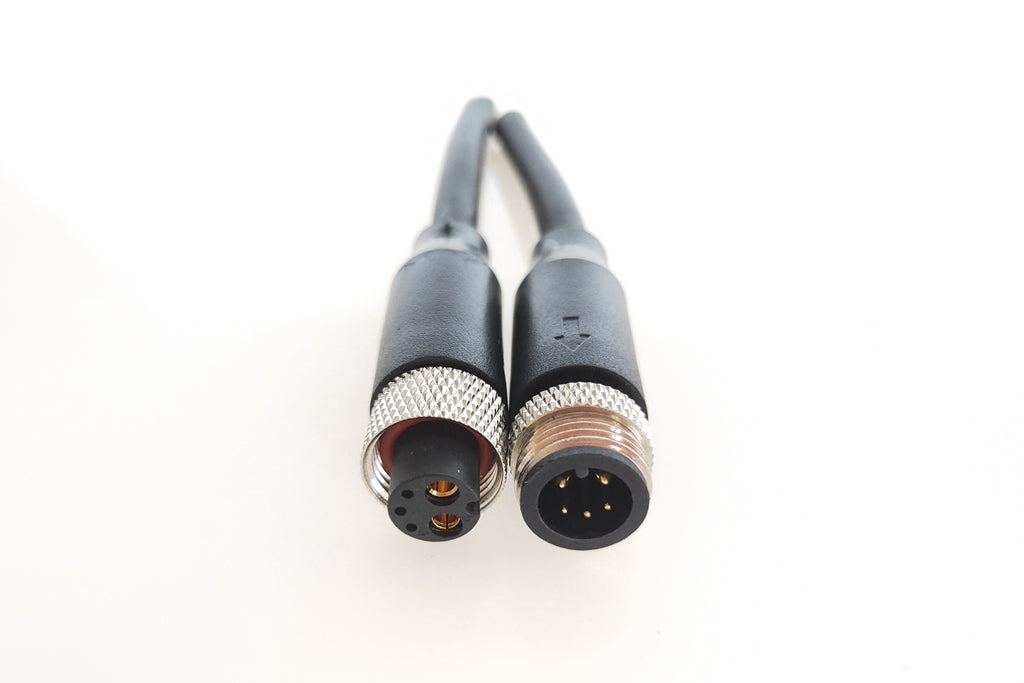

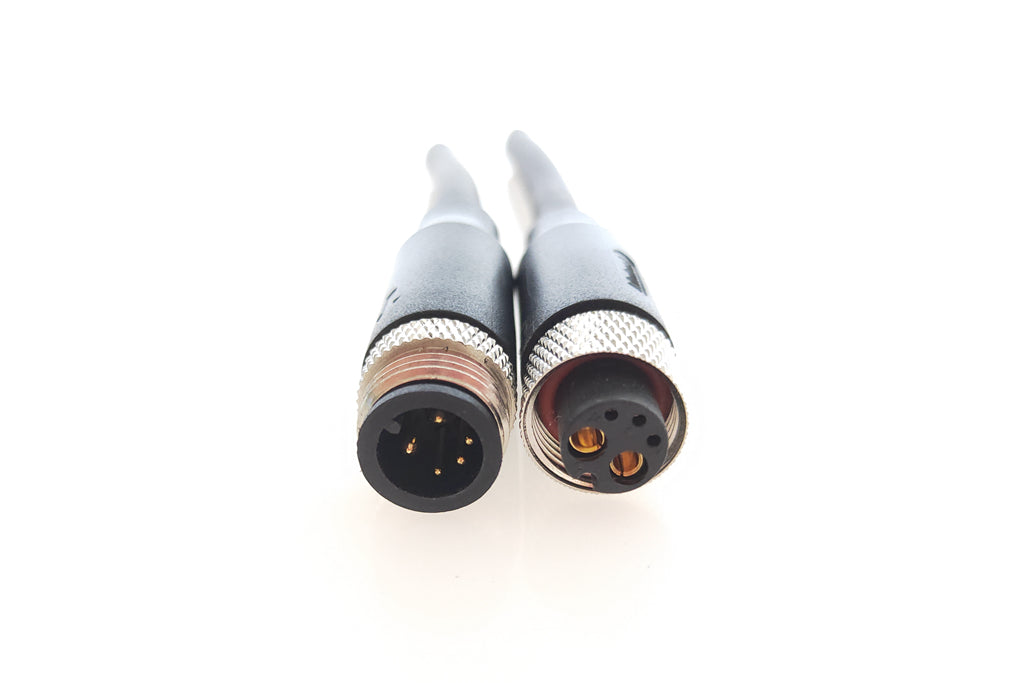

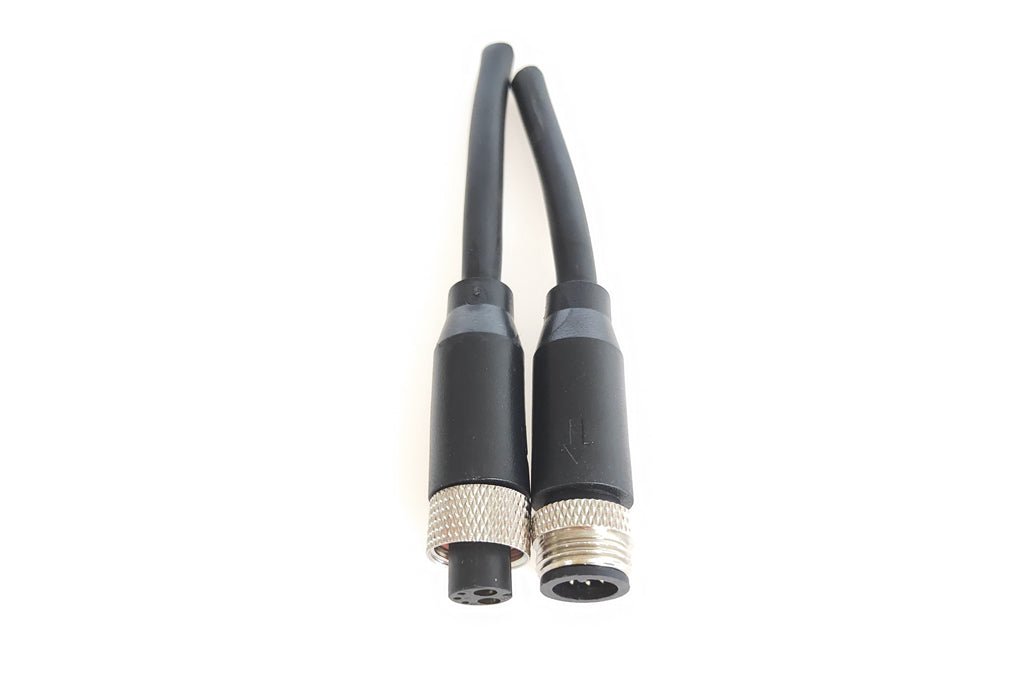

L513 Battery connectors 5 pin waterproof connectors for e-bike system
5 pin battery connectors.this battery connectors is designed with waterproof&screw- locking capacity,with 2-pin main power wires and 3 pin signal wires,for communication with battery BMS system.
For more type of battery connectors please refer to www.mutuallc.com

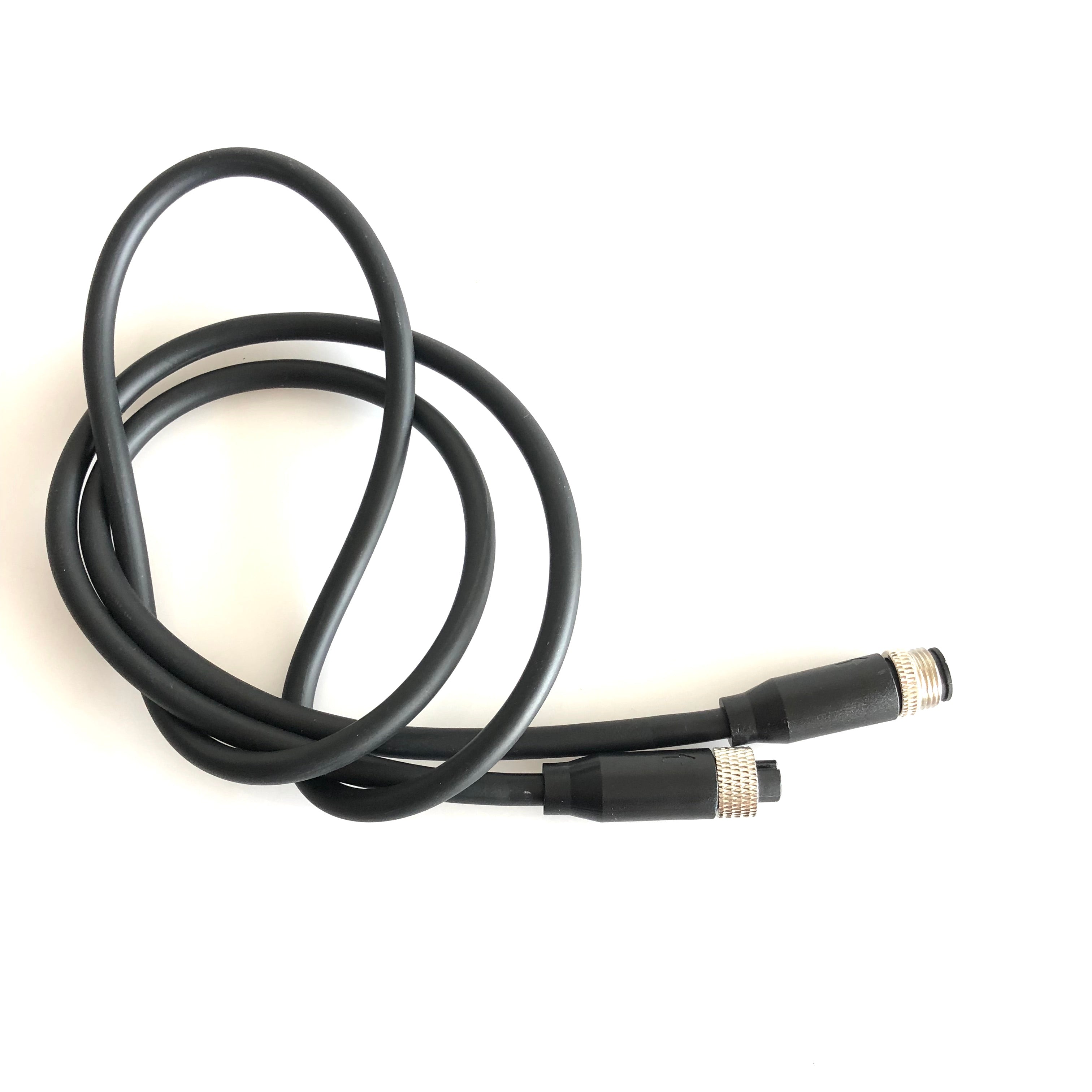

The parcel is including one cable which is Male one side and female another, cable length L=1000mm.
Rated Voltage: 36 V/48 V/60 V/72 V DC /60 V AC
Rated Current:25 A signal: 5A
Contact Resistance:≤10 mΩ
Insulation Resistance:≥20 MΩ
Terminal Material: Copper Alloy(Gold Plated)
Protection Level: IP 65-667
Contact Durability: 3000 times
Wire Specification:0.34 mm²+ 4.0 mm²/2.0 mm²
Custom cable length.For more design please contact us email:Motowoks@hotmail.com
Tips you want to know:
About shipping,we will process your order when payment is done,delivery option would be standard Fedex/TNT/UPS according to your country address,the door to door shipping time is about 7-9 days.The default address would be the bill address,please leave a correct address and telephone number when check out.
About warranty,our products do 1 year warranty for customers,if there are issue parts due to our products quality cause we will resend spare parts for free.
