Fat bike motor 500 W/750 W electric bike motor kit with battery

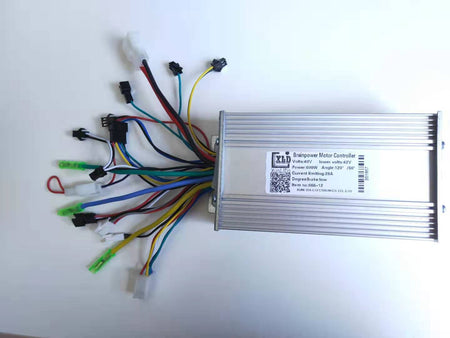

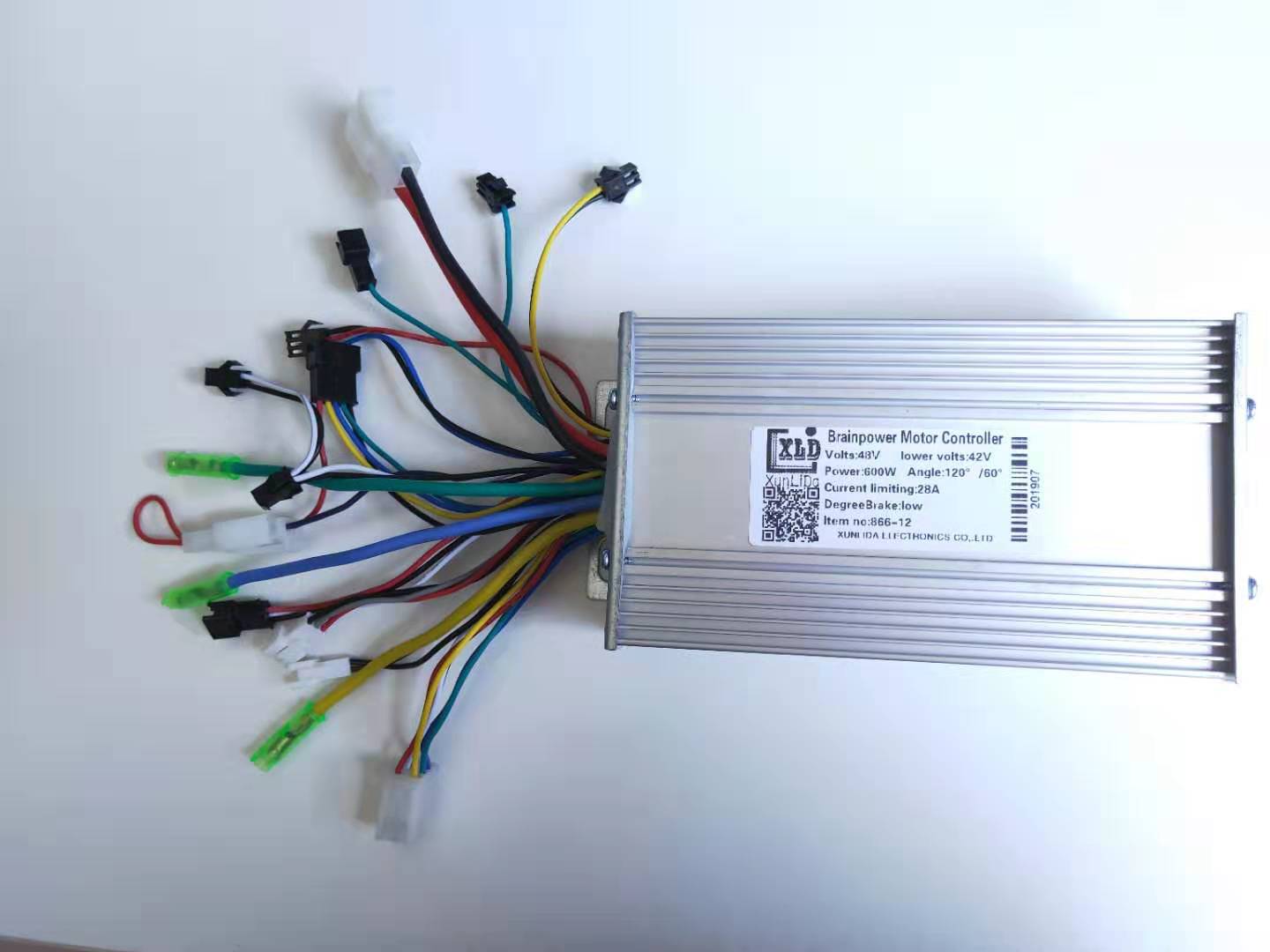

This Fat bike rear-drive motor kit,which is including motor wheel,controller, Power cord adapter for bullet connector 500mm, LCD display,throttle,e-brake,PAS and necessary cables.
|Wattage(W)||500 W/750 W|
|Open size(mm)||170 -195|
|Salt Spary test(h)||96|
|Spokes||13 G/36 spokes|
|Free wheel||Screw 7 s/8 s/9 s|
|Motor Cable||9-pin julet waterproof connector|
Voltage :36 V/48 V
Current :13 Amp
Lower volts :30 V/42 V
Power cord adapter for bullet connector

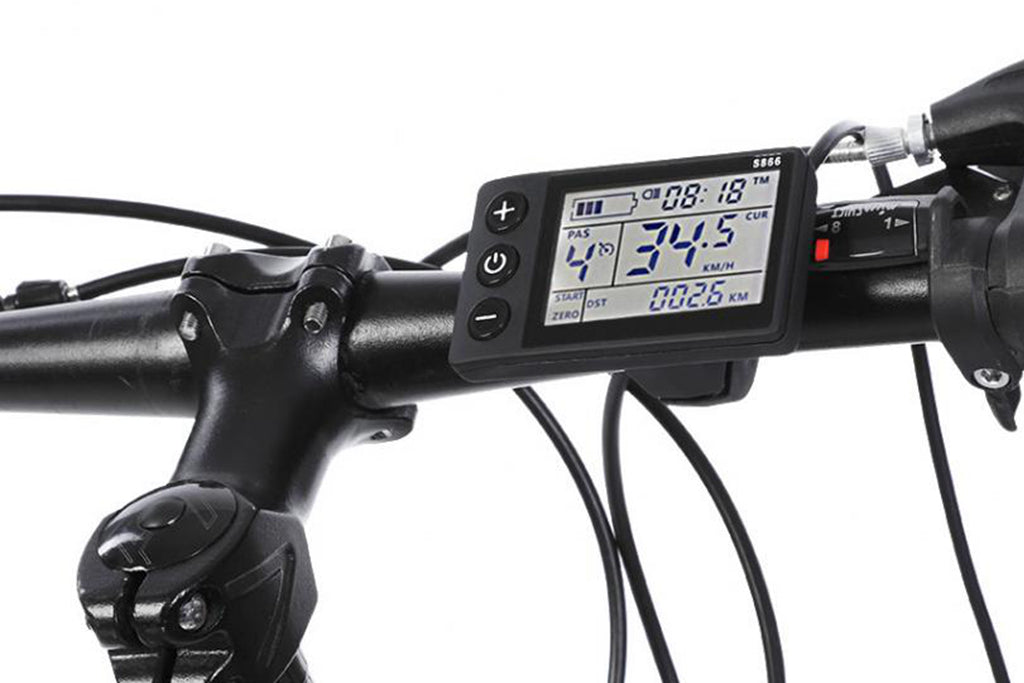

With handle bar LCD display
The display shell is made with ABS material,the screen itself is made from stalinite which makes the display very robust and longer using life.
Display the speed,assistant level,battery capacity,error code,ODO,trip,light and single riding time.
Setting is including battery power button,front light button,6 km/h walking,wheel diameter setting,Max speed setting,sleep time,back light and voltage setting.
12 magnets PAS
Wuxing twist throttle/thumb throttle
Wuxing electric brake lever

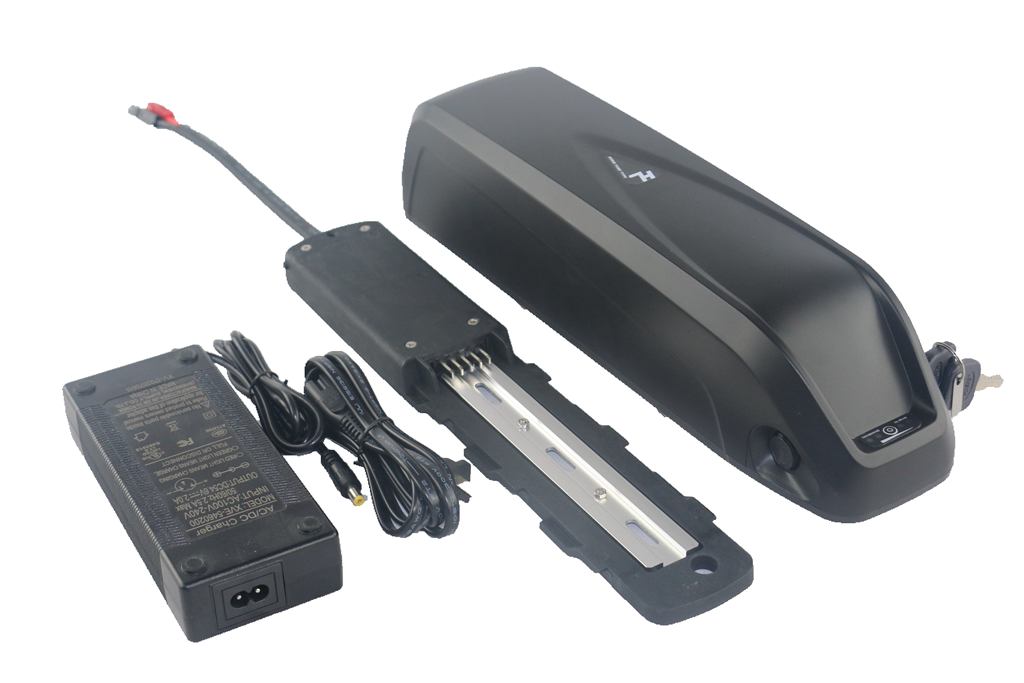

Battery hailing from unit pack.36V14Ah,48V12Ah.Standard with Samsung/LG/Panasonic cells.
