Signal connector waterproof connector for ebike system first generation
Higo Waterproof connectors.Bafang connectors
After placed an order successed please contact us and tell us what length and specification you need Via:Motowoks@hotmail.com.Each order includes 50pcs Qty.
Keywords:
2 wire waterproof connector
3 wire waterproof connector
4 wire waterproof connector
5 wire waterproof connector
6 wire waterproof connector
2 pin connector
3 pin waterproof connector
4 pin waterproof connector
5 pin waterproof connector
6 pin waterproof connector
For more connectors please refer to:
https://www.mutuallc.com

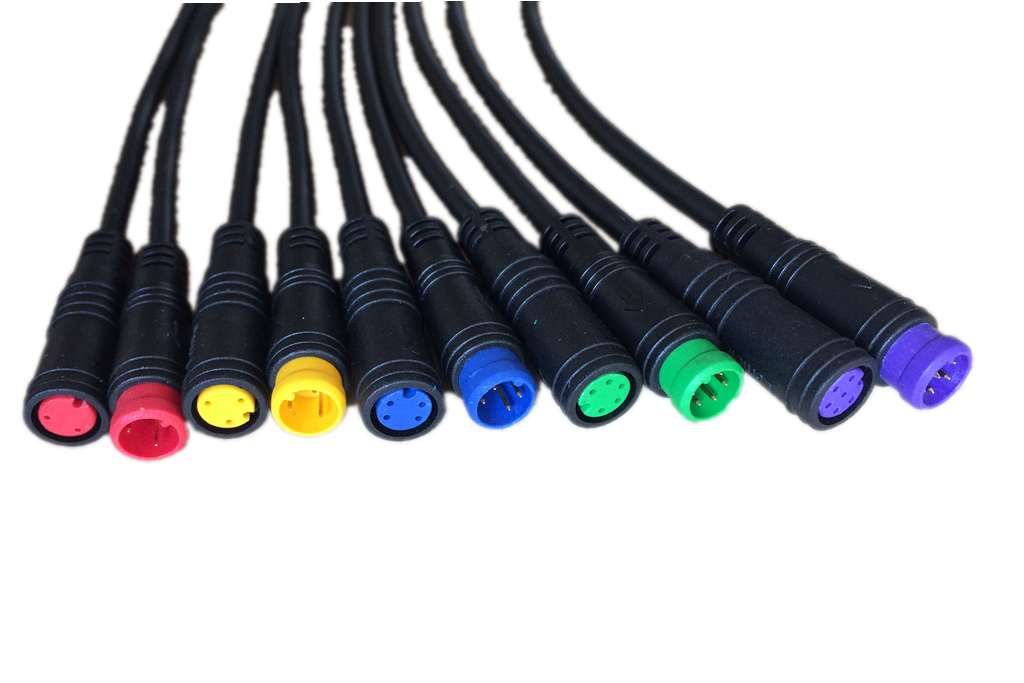

From 2-pin/3-pin/4-pin/5-pin/6-pin signal connectors.
From 3-pin/6-pin/8-pin/9-pin/10-pin motor connectors.
Cables can be male&female connector,male&bare wires,female&bare wires.
Customized cable length and style.

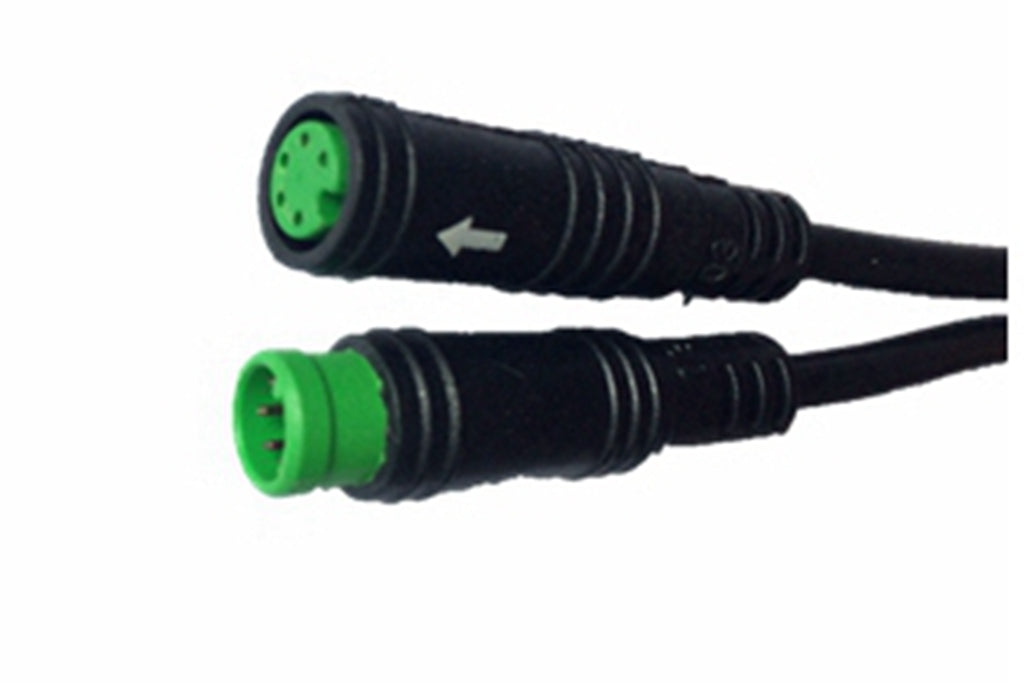

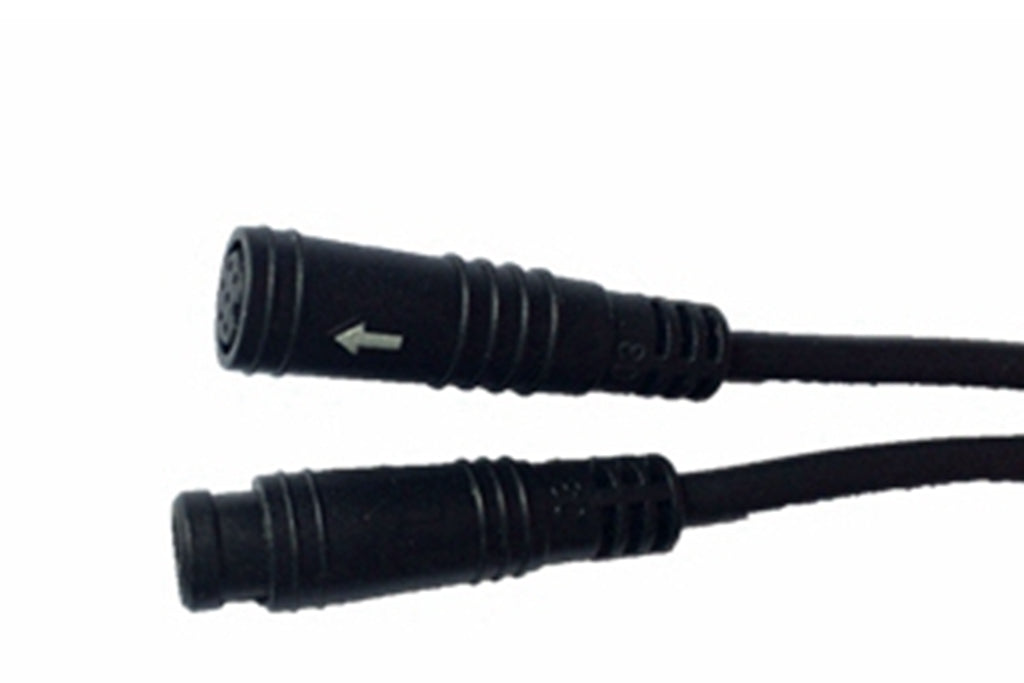

This Higo waterproof connector can be used for connecting electric bicycle drive system and including controller and display&brake lever&throttle as well as batteries.With waterproof/normal connector and very robust quality.It can also used for GPS as well as medical system etc.
Passed many certificates,very durable and high quality,extremely long using life.
Specifications:
Temperature Range:-25℃~+80℃
Rated Voltage:48 V DC /60 V AC
Rated Current:15~20 A/2 A
Contact Resistance:≤10 mΩ
Insulation Resistance:≥20 MΩ
Terminal Material: Copper Alloy(Gold Plated)
Protection Level:IP 65-66
Contact Durability:200 times
Wire Specification:1.20~1.5 mm2+0.20 mm2
Custom cable length.For more design please contact us email:Motowoks@hotmail.com
Tips you want to know:
About shipping, please leave your telephone number!we will process your order when payment is done,delivery option would be standard Fedex/TNT/UPS according to your country address,the door to door shipping time is about 7-9 days.The default address would be the bill address,please be sure to leave a correct address and telephone number when check out!!!
About warranty,our products do 1 year warranty for customers,if there are issue parts due to our products quality cause we will resend spare parts for free.
