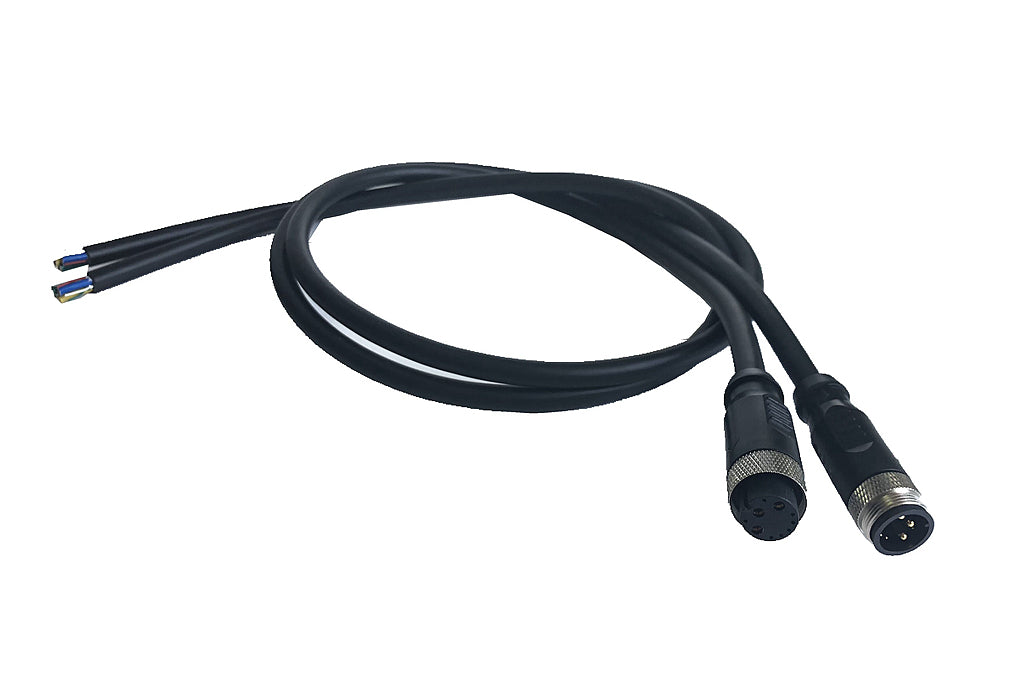

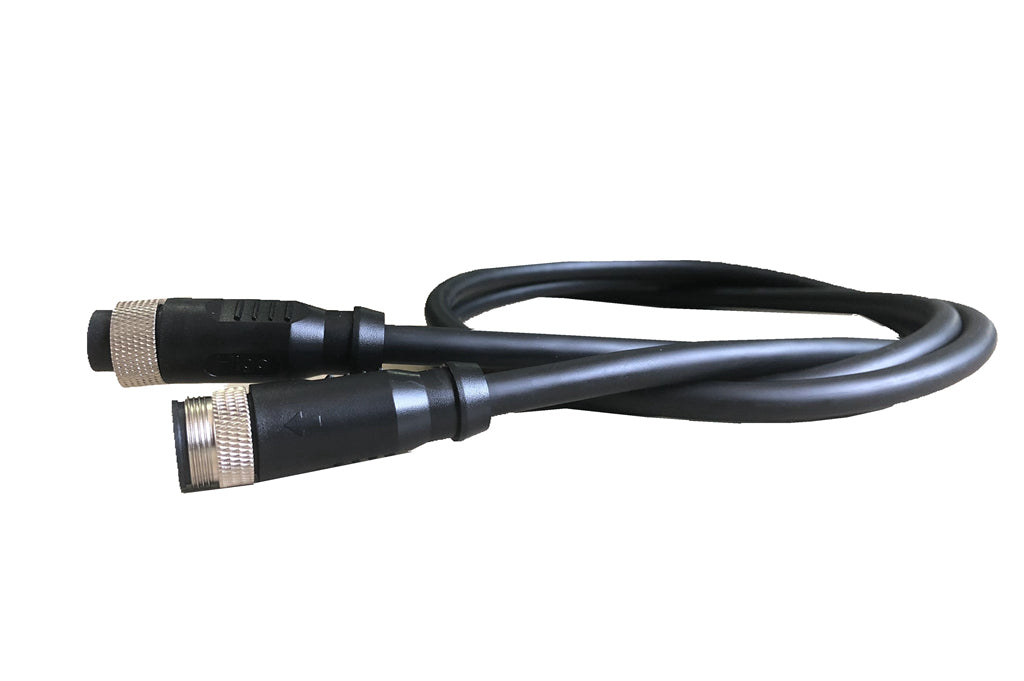

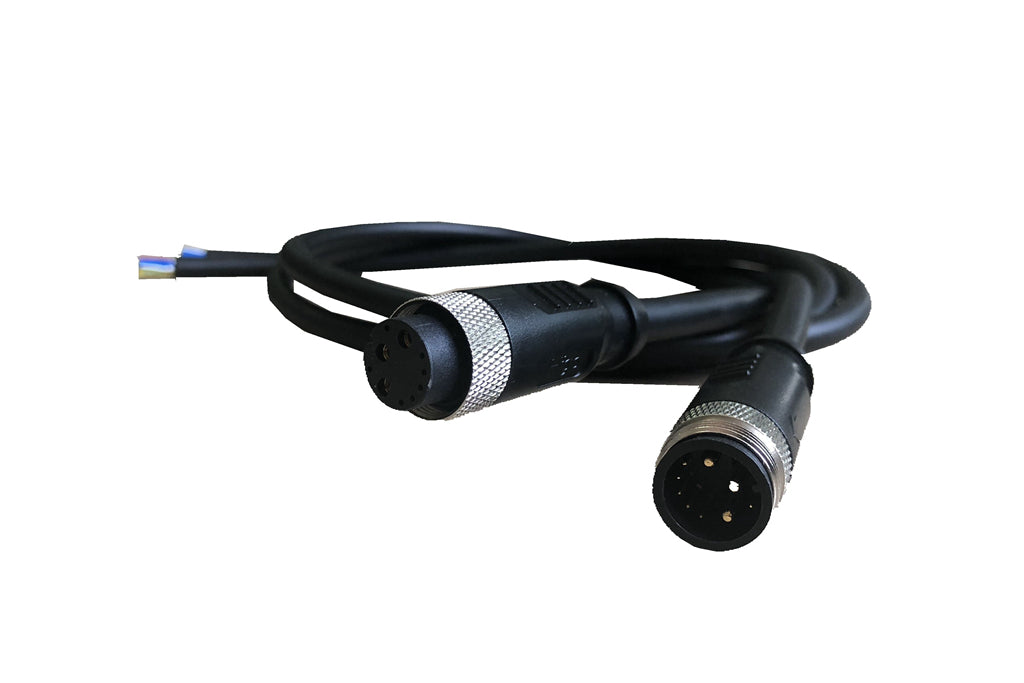

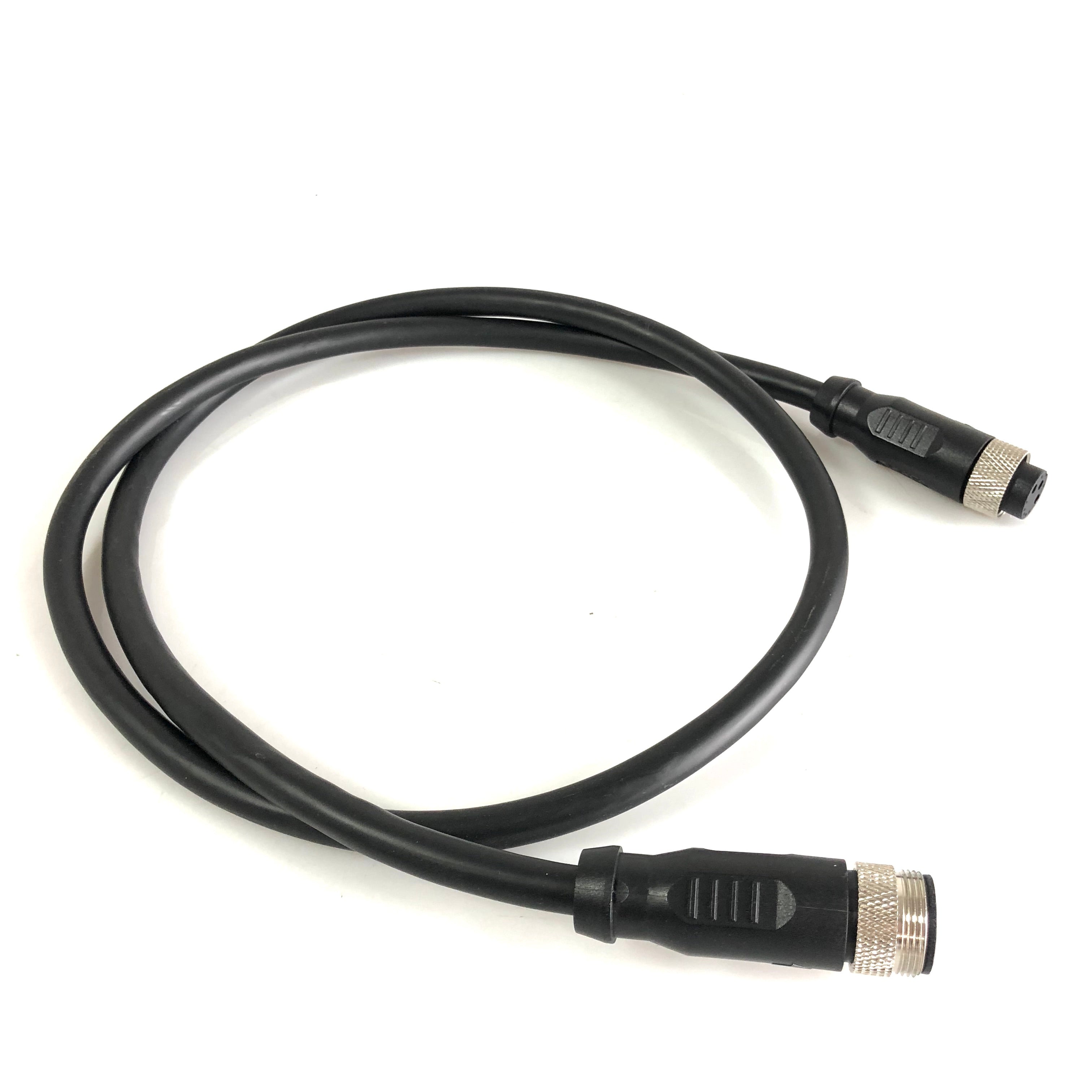

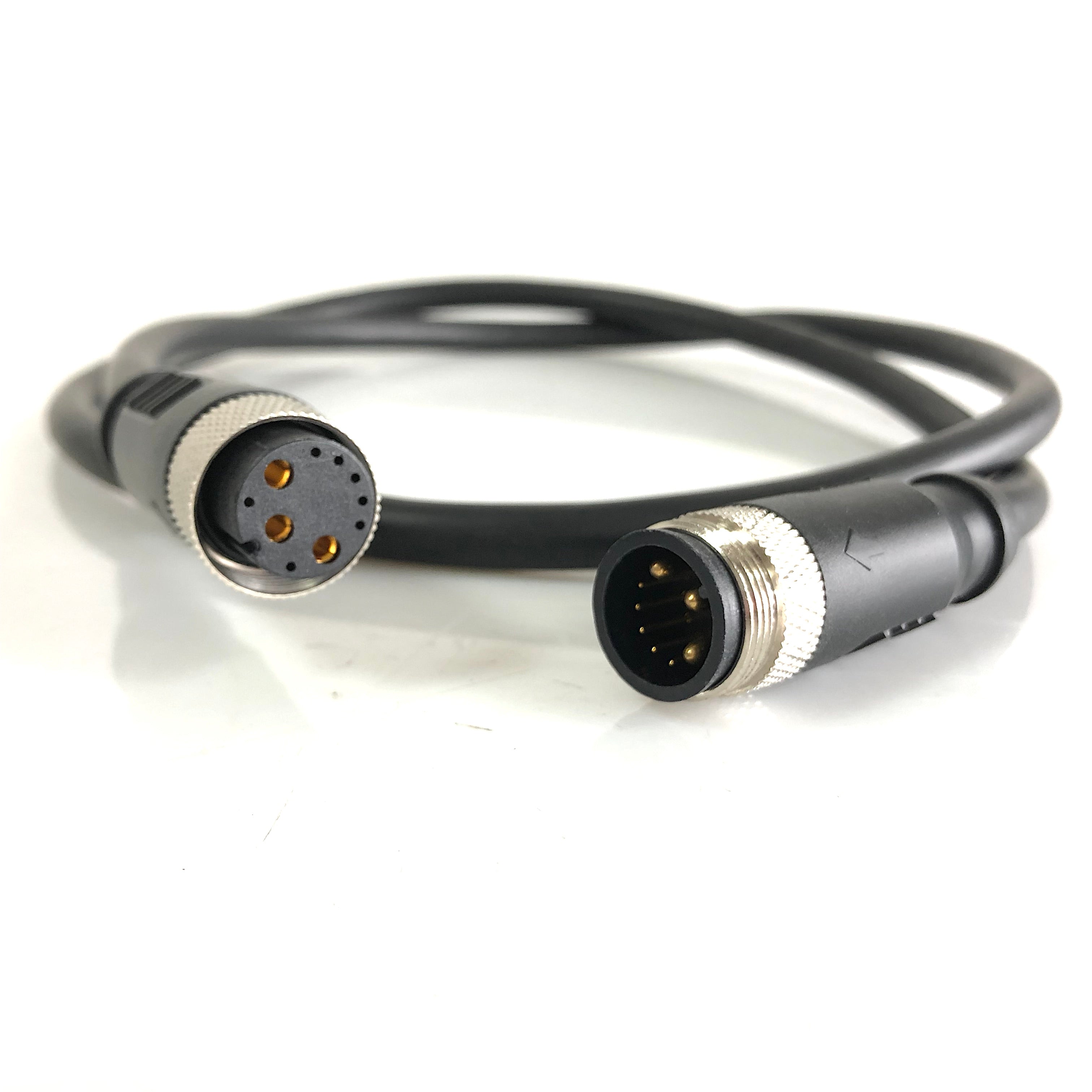

Higo connectors 10-pin waterproof connectors for e-bike motor L 1019

In stock
Regular price $46.00 inc. VAT
Length

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Higo Waterproof connectors. Julet waterproof connectors.

After placed an order successed please contact us and tell us what length and specifications you need Via:Motowoks@hotmail.com.

For more connectors please refer to:https://www.mutuallc.com

Cables can be male&female connector,male&bare wires,female&bare wires.Customized cable length and style Passed many certificates,very durable and high quality,extremely long using life.

higo L1019

higo 10-pin connector









Specifications:

Temperature Range:-25℃~+80℃
 Rated Voltage:48 V DC /60 V AC
Rated Current:45 A/2 A
Contact Resistance:≤10 mΩ
Insulation Resistance:≥20 MΩ
Terminal Material: Copper Alloy(Gold Plated)
Protection Level:IP 67
Contact Durability:200 times
OD:19 mm   Fitting Length:115 mm
Wire Specification:3*4.0 mm2+7*0.14 mm2

L1019 connector

higo L1019



higo julet





Custom cable length.For more design please contact us email:Motowoks@hotmail.com

Tips you want to know:

About shipping,  please leave your telephone number! we will process your order when payment is done,delivery option would be standard Fedex/TNT/UPS according to your country address,the door to door shipping time is about 7-9 days.The default address would be the bill address,please  be sure to leave a correct address and telephone number when check out!!!

About warranty,our products do 1 year warranty for customers,if there are issue parts due to our products quality cause we will resend spare parts for free.
