Higo L1019 Cable Connector Customade 10 Pin Motor Male Wire Waterproof 3 Phrase and 7 Signal RM G060.1000 Fat Hub
Regular price
$35.00
inc. VAT
Couldn't load pickup availability
Feel free to contact us for more products
This is Higo 10 pin waterproof battery connector L1019 cable.Can be used for E-bike hub motor, with 3 phrase wires and 7 single wires.
Specifications:
Model:L1019
Rated Voltage:24V/36V/48V/52V/60V/72V
Rated current:45Amp/2Amp
Protection degree:IP67

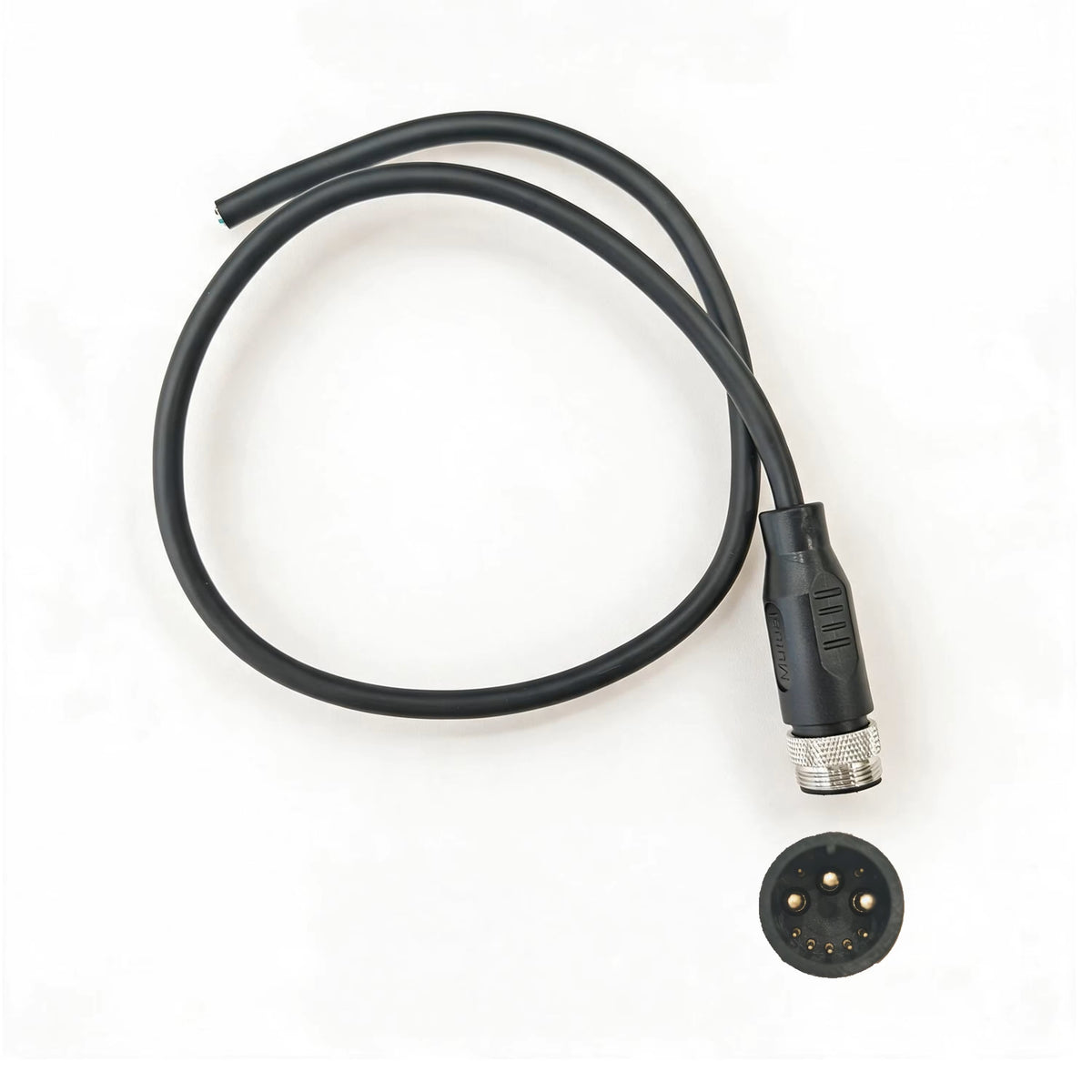

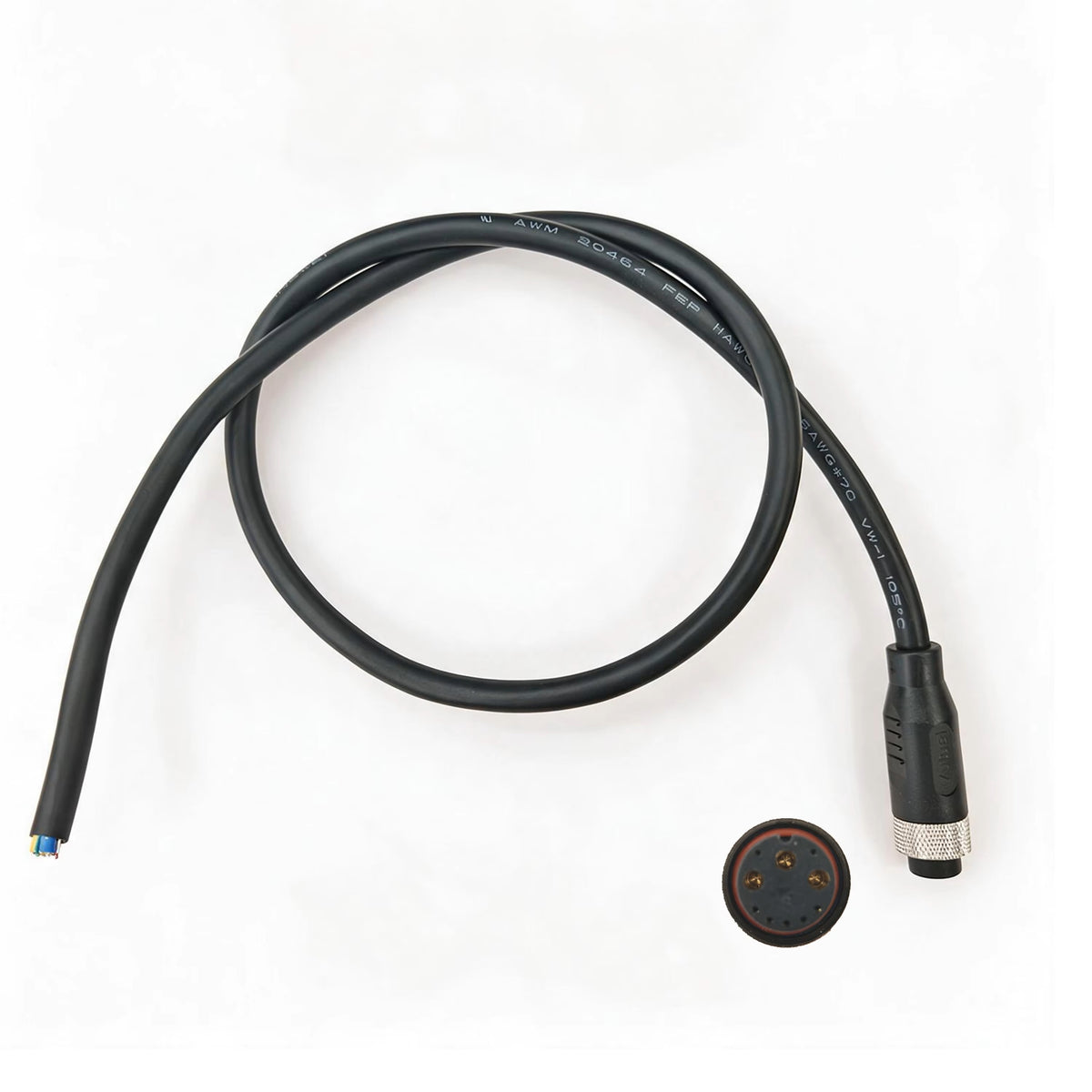

Male cable:
Male Cable length:L=600mm
Male cable Wire section:3*2.0mm²+6*0.14mm²
Male Diameter:6.2mm

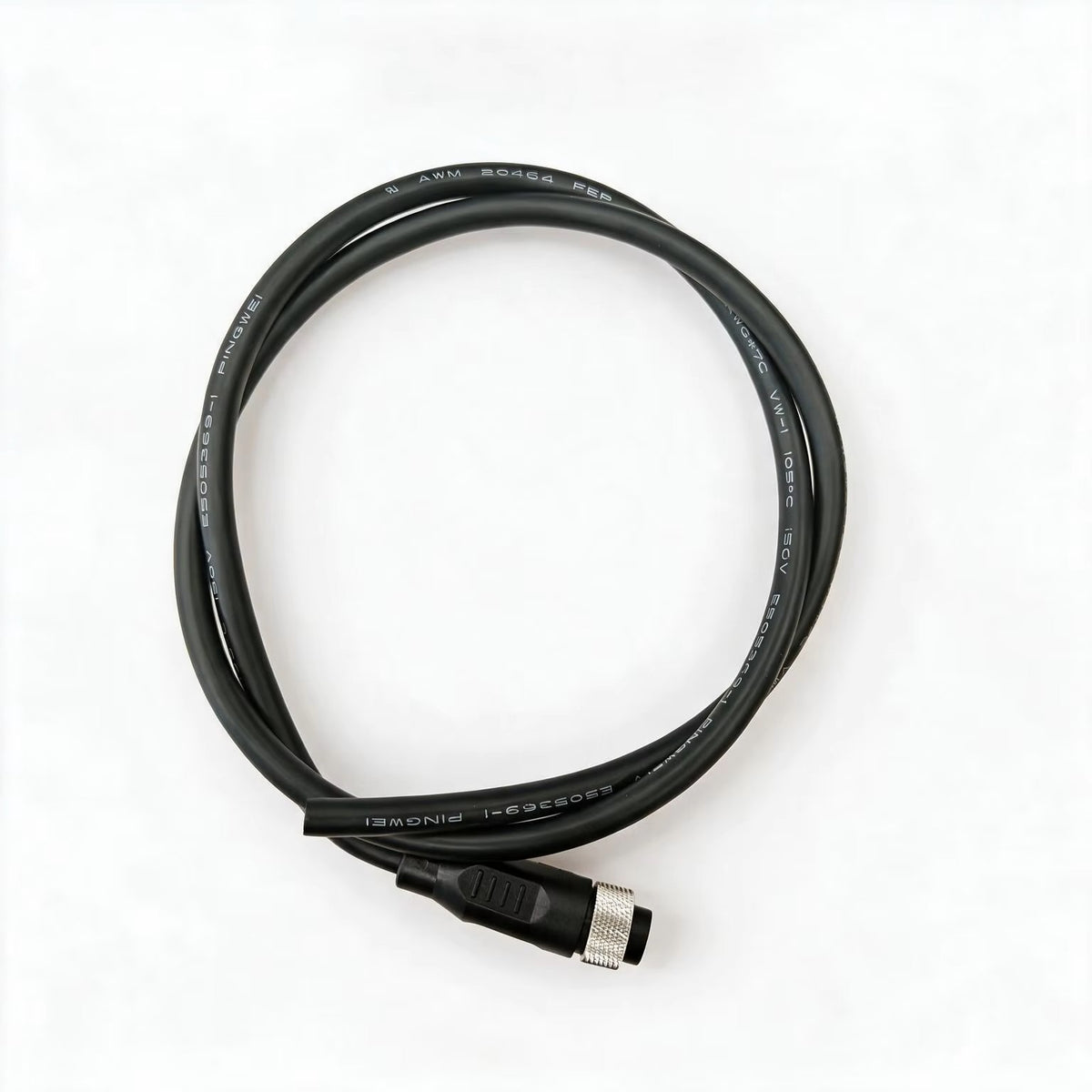

Female Cable
Cable length:L=1070mm
Cable Wire section:3*4.0mm²+7*0.14mm²,Cable diameter overall:8mm

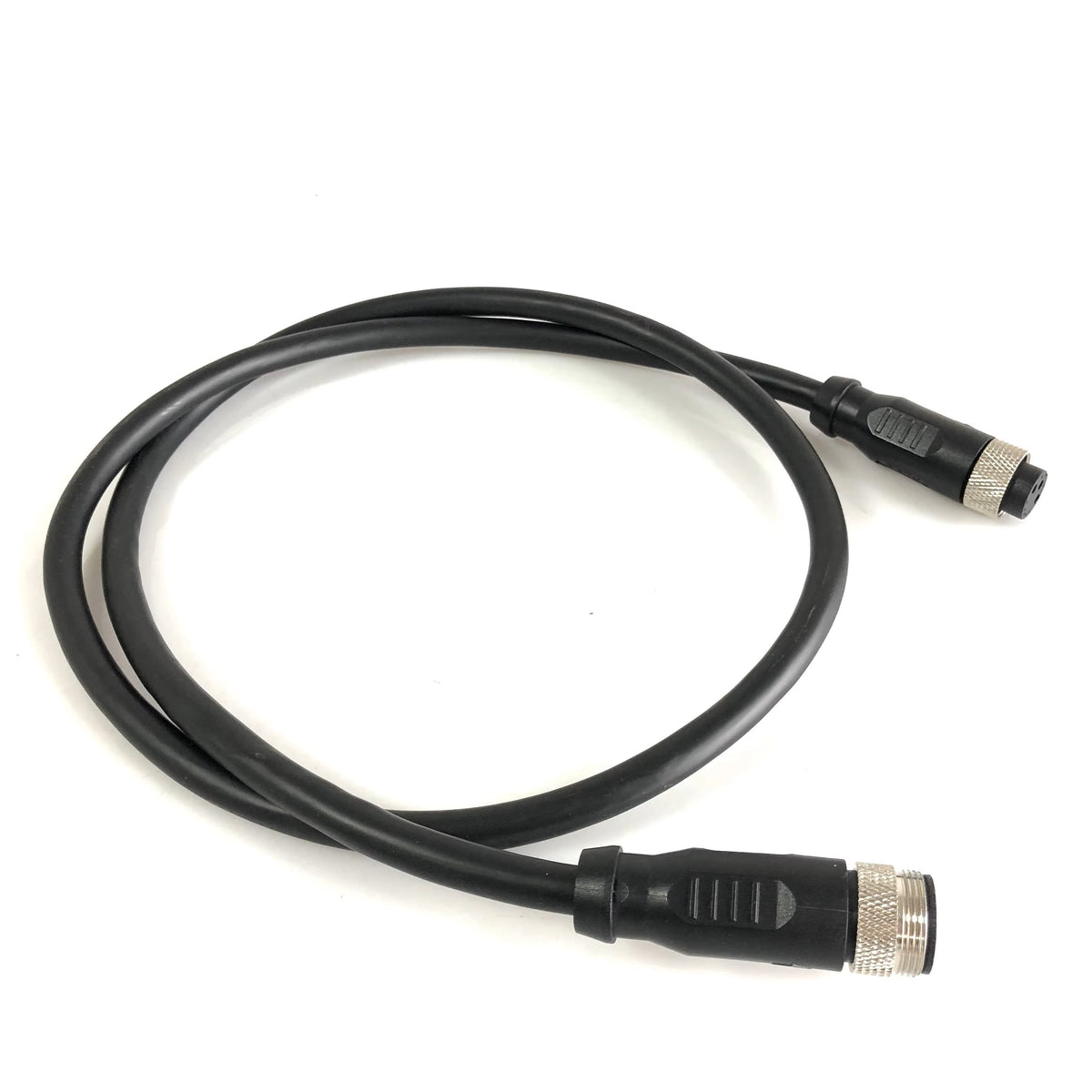

Male and Female extension cable
Cable length L=1000mm
Wire section:3*4.0mm²+7*0.14mm² cable diameter 8.5mm
