YLS L915 motor connectors for e-bike system

  • $26.00
Tax included. Shipping calculated at checkout.

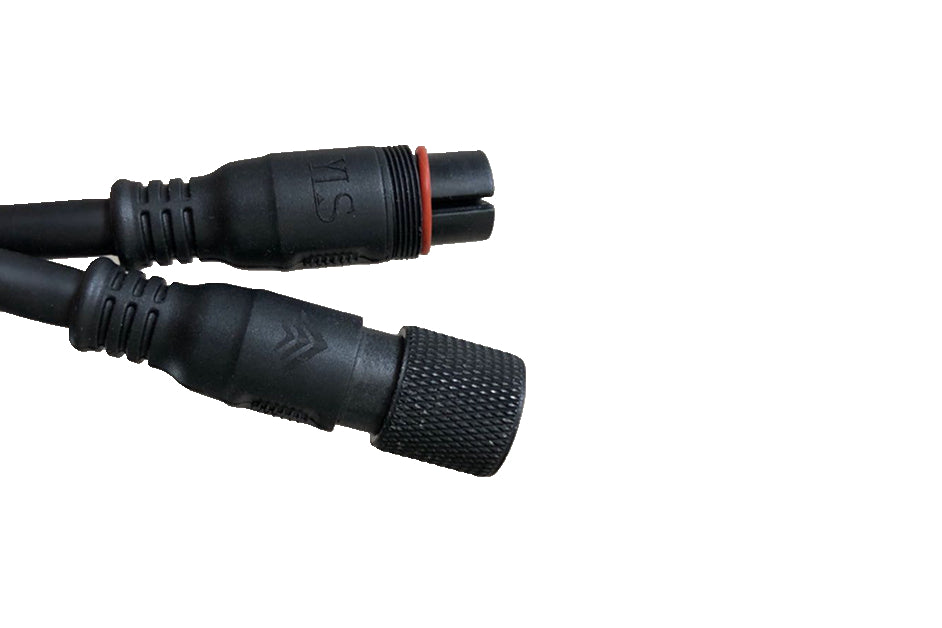

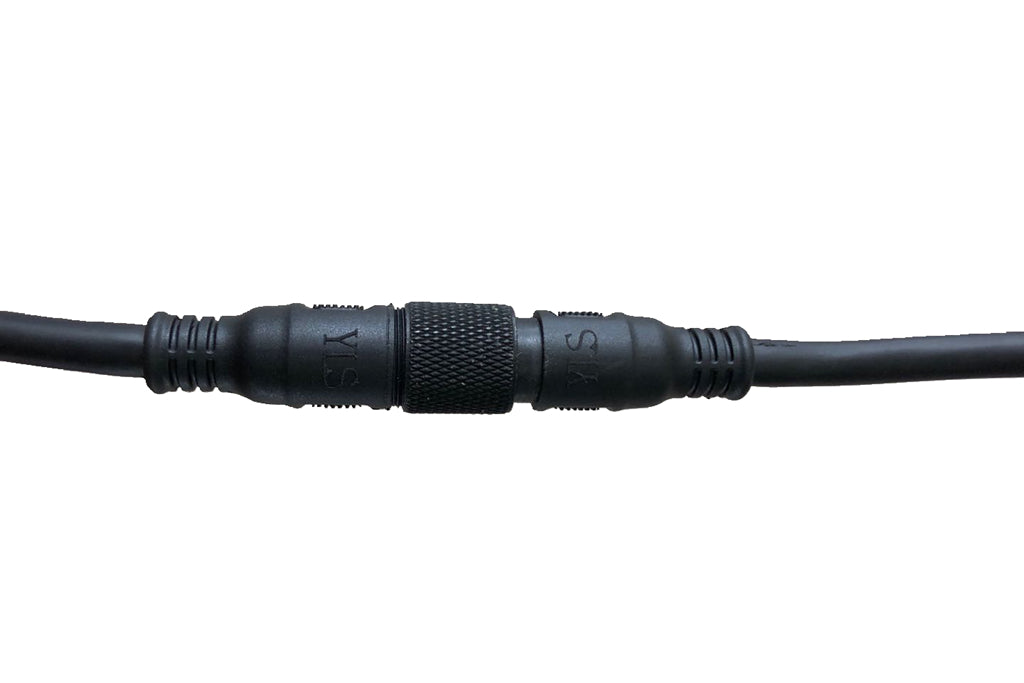

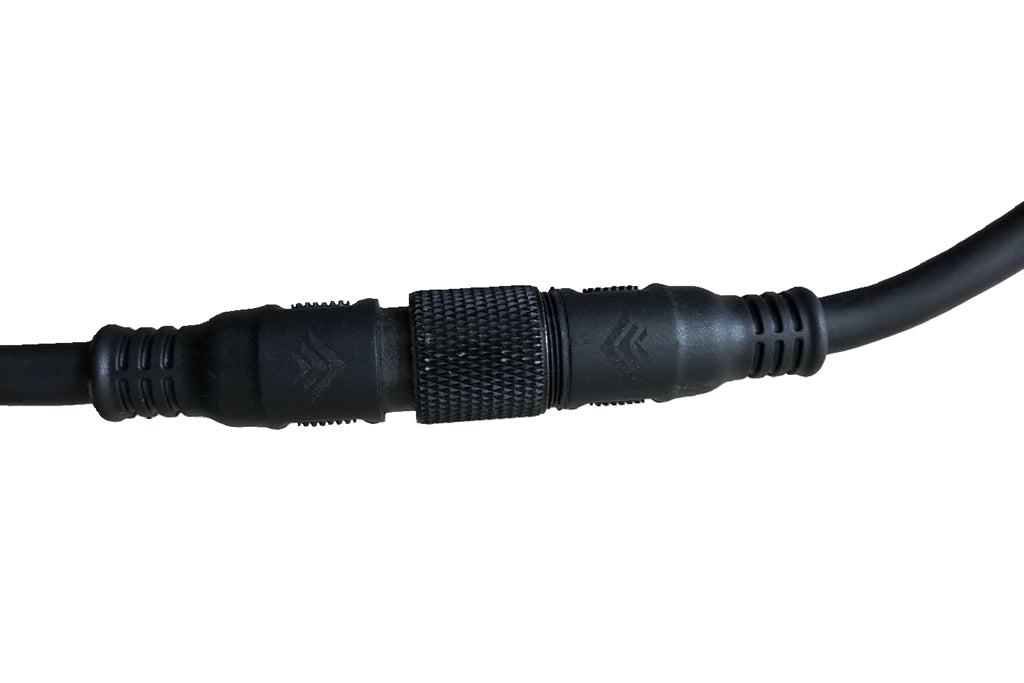

YLS motor connectors.this connectors is designed with waterproof&screw- locking capacity,with 9-pin main power wires to for e-bike system.

After placed an order successed please contact us and tell us what length and specification you need Via:Motowoks@hotmail.com.


2 wire waterproof connector

3 wire waterproof connector

4 wire waterproof connector

5 wire waterproof connector

6 wire waterproof connector

2 pin connector

3 pin waterproof connector

4 pin waterproof connector

5 pin waterproof connector

6 pin waterproof connector

9 pin connector cable

9 pin electrical connector

9 pin waterproof connector

9 pin ebike connector

For more connectors please refer to:https://www.mutuallc.com


Temperature Range:-25℃~+80℃

Rated Voltage: 36 V/48 V/60 V/72 V DC /60 V AC

Rated Current:25 A signal: 5A

Contact Resistance:≤10 mΩ

Insulation Resistance:≥20 MΩ

Terminal Material: Copper Alloy(Gold Plated)

Protection Level: IP 65-667

Contact Durability: 3000 times

Wire Specification:0.34 mm²+ 4.0 mm²/2.0 mm²



Custom cable length.For more design please contact us email:Motowoks@hotmail.com

Tips you want to know:

About shipping,please leave your telephone number!we will process your order when payment is done,delivery option would be standard Fedex/TNT/UPS according to your country address,the door to door shipping time is about 7-9 days.The default address would be the bill address,please be sure to leave a correct address and telephone number when check out!!!

About warranty,our products do 1 year warranty for customers,if there are issue parts due to our products quality cause we will resend spare parts for free.
