Mini connectors waterproof connectors new design

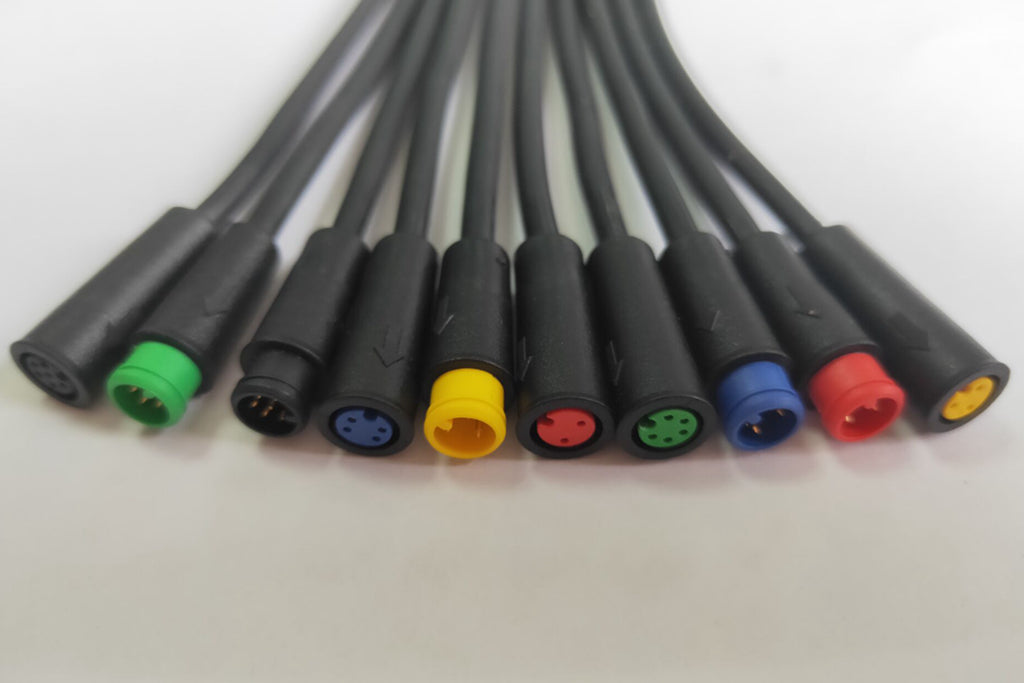

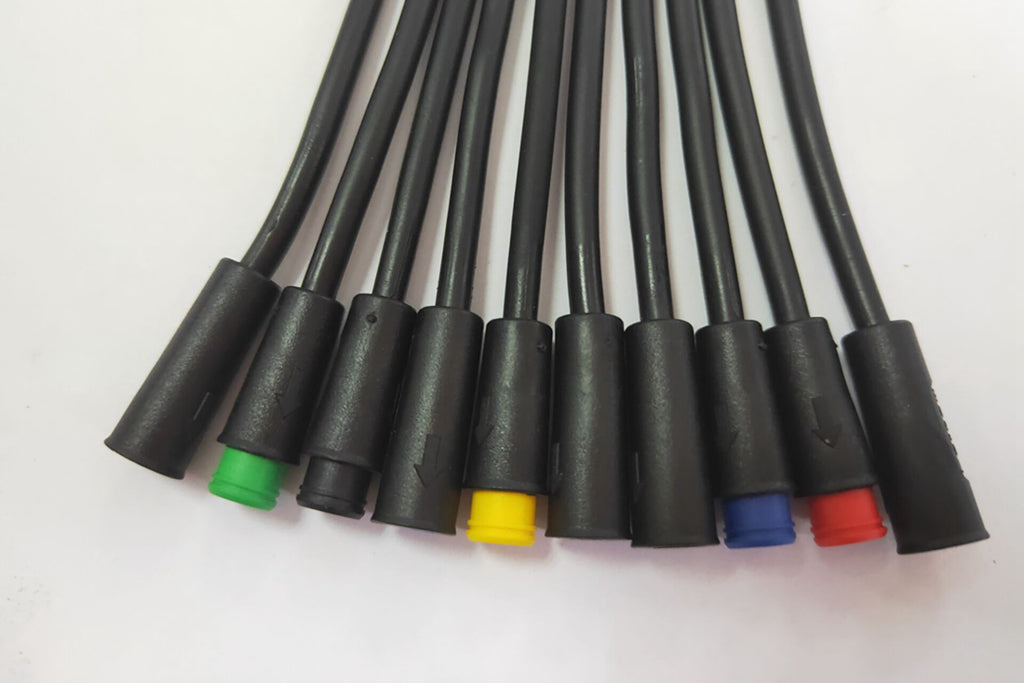

Mini Waterproof connectors.
From 2-pin/3-pin/4-pin/5-pin/6-pin signal connectors.
Cables can be male&female connector,male&bare wires,female&bare wires.
Customized cable length and style.
Keywords:e
bike controller connectors
waterproof wire connectors
2 wire waterproof connector
3 wire waterproof connector
4 wire waterproof connector
5 wire waterproof connector
6 wire waterproof connector
2 pin wire connector
3 pin waterproof connector
4 pin waterproof connector
5 pin waterproof connector
6 pin waterproof connector
For more connectors please refer to:https://www.mutuallc.com
This mini waterproof connector can be used for electric equipment device connection such as connecting electric bicycle drive system and including controller and display&brake lever&throttle as well as batteries.With waterproof/normal connector and very robust quality.It can also used for GPS as well as medical system etc.
Passed many certificates,very durable and high quality,extremely long using life.
Connector dimensions:
Specifications:
Temperature Range:-35℃~+80℃
Rated Voltage: 48 V DC /60 V AC
Limit Voltage: 200 V AC 50 HZ 1 min
Rated Current: 1 A-3 A depends on wires diameter
Contact Resistance:≤10 mΩ
Insulation Resistance:≥20 MΩ
Terminal Material: Copper Alloy(Gold Plated)
Protection Level:IP 65-66
Contact Durability: 200 times
Wire Specification: 0.1 mm2-0.20 mm2
After placed an order successed please contact us and tell us what length and specification you need.Minimum order quantity 50pcs Qty.
Custom cable length.For more design please contact us email:Motowoks@hotmail.com
Tips you want to know:
About shipping,please leave your telephone number!we will process your order when payment is done,delivery option would be standard Fedex/TNT/UPS according to your country address,the door to door shipping time is about 7-9 days.The default address would be the bill address,please be sure to leave a correct address and telephone number when check out!!!
About warranty,our products do 1 year warranty for customers,if there are issue parts due to our products quality cause we will resend spare parts for free.
