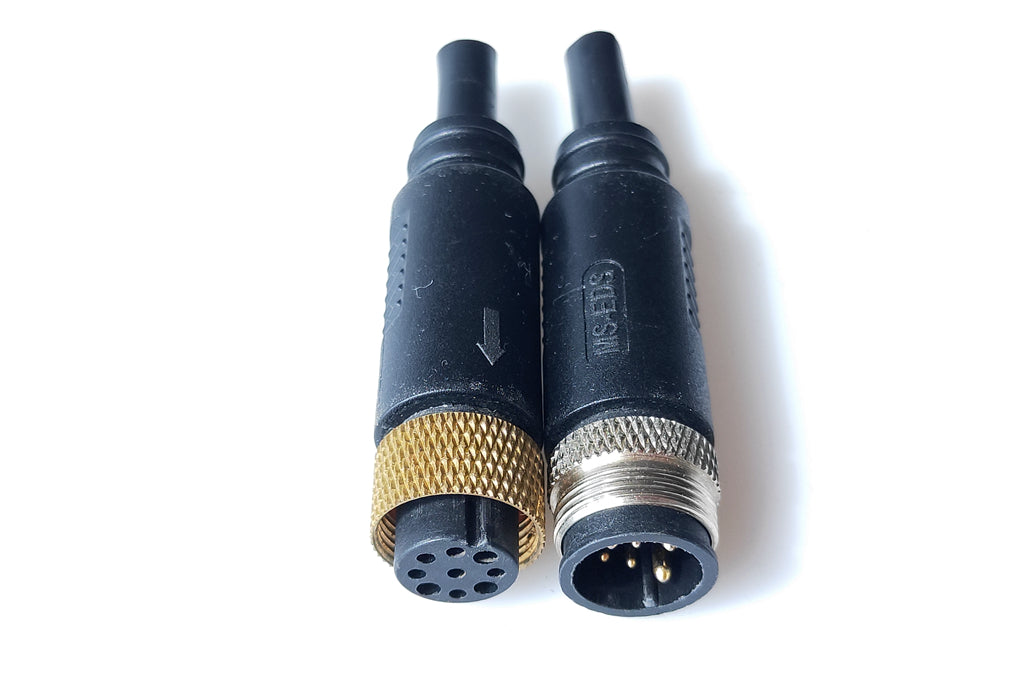

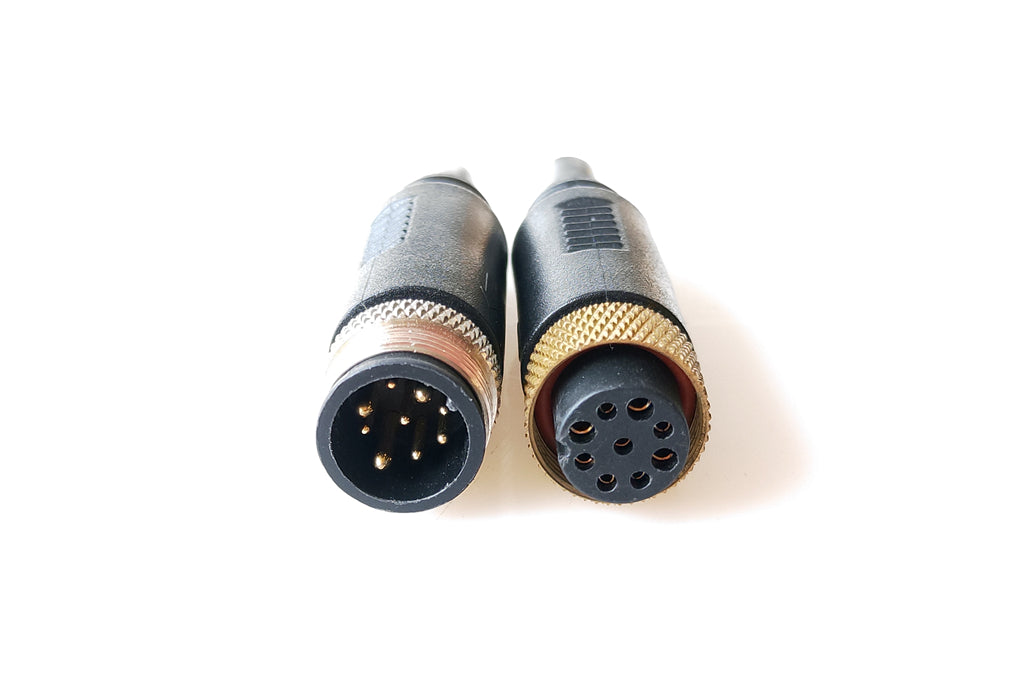

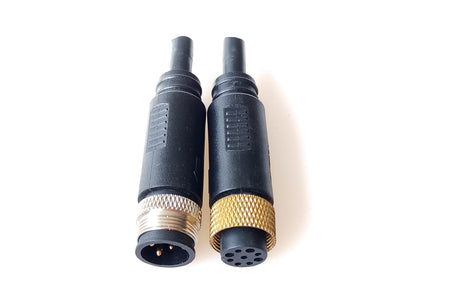

Motor waterproof connector 9 pin

  • $50.00
Tax included. Shipping calculated at checkout.


This is the 9 pin waterproof screw locking connector which can be used for electric bike motor connectors for 9 pin ebike connector,it also can be used for ebike controller connectors and many other fields.Joint with screw locking,the connector can be very durable and with IP67 super good waterproof capacity.The current can be 35Amp on main wires and 2Amp on signal wires.The 9 pin waterproof connector/9 pin electrical connector has 9 prong cable and 200times for connection.
After placed an order successed please contact us and tell us what length and specification you need Via:Motowoks@hotmail.com.

Keywords:

ebike battery connector

ebike battery connector types

ebike power connector

ebike charger connector

battery charger terminals

ebike battery connections

For more connectors please refer to:
https://www.mutuallc.com

batterty connector

Specifications:

Temperature Range:-25℃~+80℃

Rated Voltage: 60 V AC/DC

Rated Current:35 A/2A

Contact Resistance:≤10 mΩ

Insulation Resistance≥20 MΩ

Contact Material: Copper Alloy Plated with gold which conforms to military standard

Protection Level: IP 67

Contact Durability: 3000 times



Withstanding Voltage:700V



Mating type: Screw version



Mating Cycles:200 times



External diameter:17.9mm



Mating length:100.8mm



Wire section:3.0mm²+ 0.2mm²



9pin

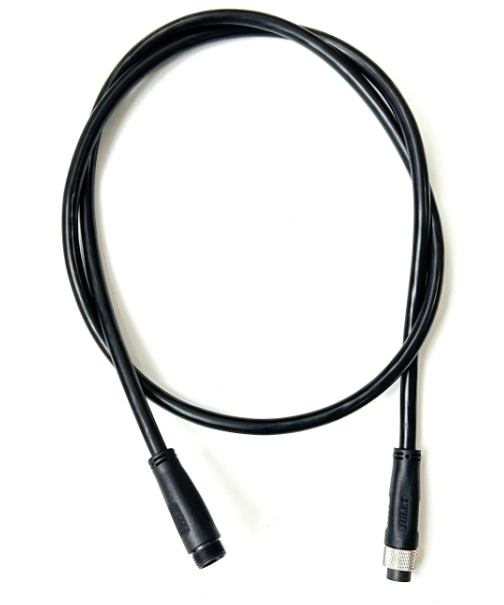

Custom cable length.For more design please contact us email:Motowoks@hotmail.com

Tips you want to know:

About shipping,we will process your order when payment is done,delivery option would be standard Fedex/TNT/UPS according to your country address,the door to door shipping time is about 7-9 days.The default address would be the bill address,please leave a correct address and telephone number when check out.

About warranty,our products do 1 year warranty for customers,if there are issue parts due to our products quality cause we will resend spare parts for free.
